Multi gas detector

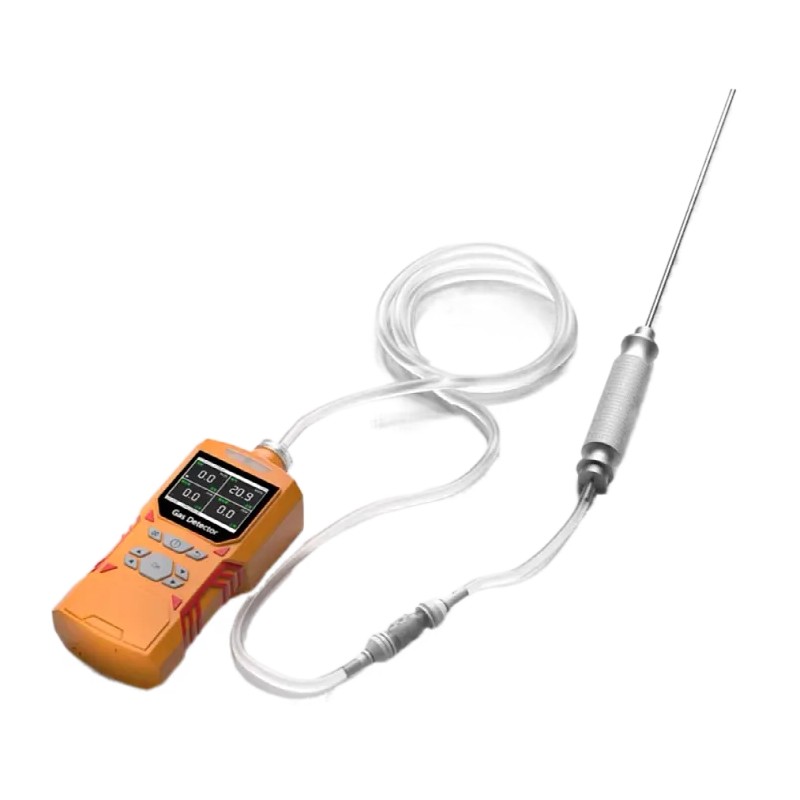

OC-901 Portable multi gas detector with inner pump

OC‑901 is an industrial‑grade portable pump‑suction multi‑gas detector. Equipped with original imported sensors, it supports 1‑4 gas channel customization. Built‑in inner pump delivers fast sampling response. 2.4‑inch color screen supports Chinese & English dual‑language menu. It provides voice, audible‑visual and vibration triple alarm. IP65 protection, Ex ib IIB T3 explosion‑proof grade, 4000mAh large‑capacity lithium battery for over 10‑hour continuous operation. Alarm data storage is available. Comes with aluminum alloy carrying case, ideal for toxic, flammable gas leakage detection in hazardous industrial sites.

The OC-901 Portable Pump - Suction Gas Detector: Unparalleled Detection for Enhanced Safety

Our Portable Pump - Suction Gas Detector is a cutting - edge device designed to meet the diverse gas detection needs across various industries. With the wide application of the gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the gas concentration of the Combustible gas and Toxic gas.


Features & Advantages:

1. Built - in Pump for Active Sampling: OC-901 portable multi gas detector is equipped with a powerful built - in pump, the detector can actively draw in air samples. This feature enables it to detect gases even from a distance or in hard - to - reach areas. The pump's efficient operation ensures that the detector can quickly analyze the air composition, reducing response times and enhancing safety measures.



2. Multi - Gas Detection Capability: One of the most remarkable features of our gas detector is its ability to simultaneously detect 1 - 4 different gases. This flexibility makes it suitable for a wide range of applications. Whether you need to monitor for toxic gases like carbon monoxide (CO), hydrogen sulfide (H₂S), or oxygen (O₂) deficiency, or explosive gases such as methane (CH₄), our detector has got you covered.



3. Sampler Compatibility: Our OC-901 Portable Pump - Suction Gas Detector can be easily connected to a sampler. This connection allows for more in - depth and detailed gas analysis. By using a sampler, you can collect samples over a specific period or from different locations, and then analyze them using our detector. This feature is particularly useful for industries that require comprehensive environmental monitoring, such as environmental protection agencies, research institutions, and large - scale industrial facilities.


Technical Parameter:

Gas typeCombustible gas, Toxic gas, Oxygen, Carbon Dioxide, TVOC, etc.
Sensor TypeCatalytic combustion sensor for combustible gas;Electrochemical sensor for toxic gas & oxygen;NDIR sensor for CO₂, CH₄, SF₆;PID sensor for TVOC gas
Sensor life2~3 years
Measuring rangeCustomized according to different gas types
Display InformationGas types, Concentration value, Concentration unit, Time, Battery status, Alarm status, etc.
Display2.4 inch colorful screen
Alarm StorageWith alarm data storage function, can review the data from the detector..
Sampling modePump-suction sampling (Available for connection with external pump)
Operating LanguageChinese or English operating menu is able to be changed freely.
Alarm ModeAudible-visual-vibration alarm, sound≥75dB
Power Supply3.7V, 4000mAh rechargeable lithium battery, continuous working period over 10 hours.
Explosion-proof GradeEx ib IIB T3
Protection GradeIP65
Working Environment

Working Temperature: -20℃~50℃

Working Humidity: 0-95%RH (non-condensing)

Body MaterialABS and PC
PackageAluminum alloy box
Dimensions190*75*47mm
Weight376g (with charger)
Warranty1 years

Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.

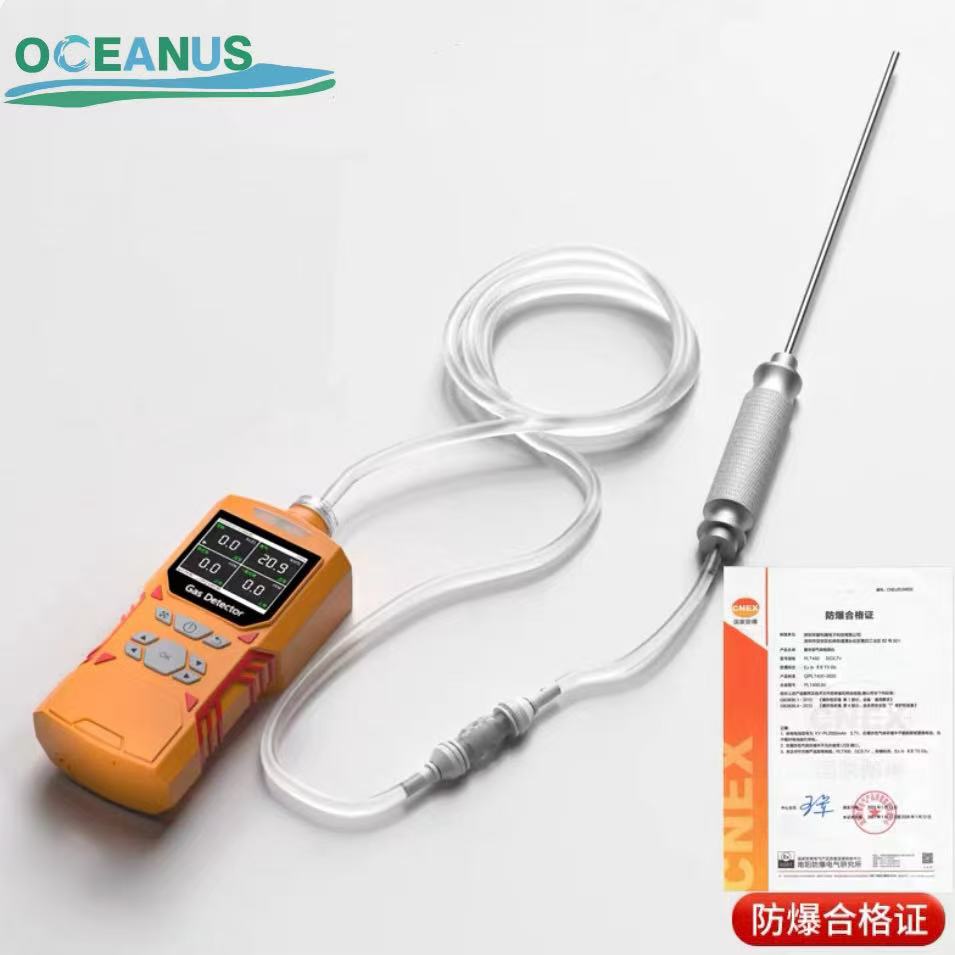

OC901 (7).jpg


In conclusion, our Portable Pump - Suction Gas Detector combines advanced technology, versatility, and ease of use to offer an unparalleled gas detection solution. It is the ideal choice for ensuring safety, compliance, and efficient operations in any gas - sensitive environment.





Application Scenarios

  • Petrochemical plant & chemical workshop gas leakage patrol

  • Sewage treatment plant and landfill site toxic‑combustible gas inspection

  • Power substation, high‑voltage equipment safety monitoring

  • Confined‑space operation and underground work site detection

  • Pharmaceutical, printing, semiconductor manufacturing safety check

  • Environmental law enforcement and industrial hazard site inspection


Why choose us?

We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipment since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.

If you need more details of the OC-901 portable gas detector, welcome to contact us:

Email: info@china-oceanus.com

Telephone: +86 0371 60998169

Whatsapp: +86 15981942832

Whatsapp: +86 13673683950
