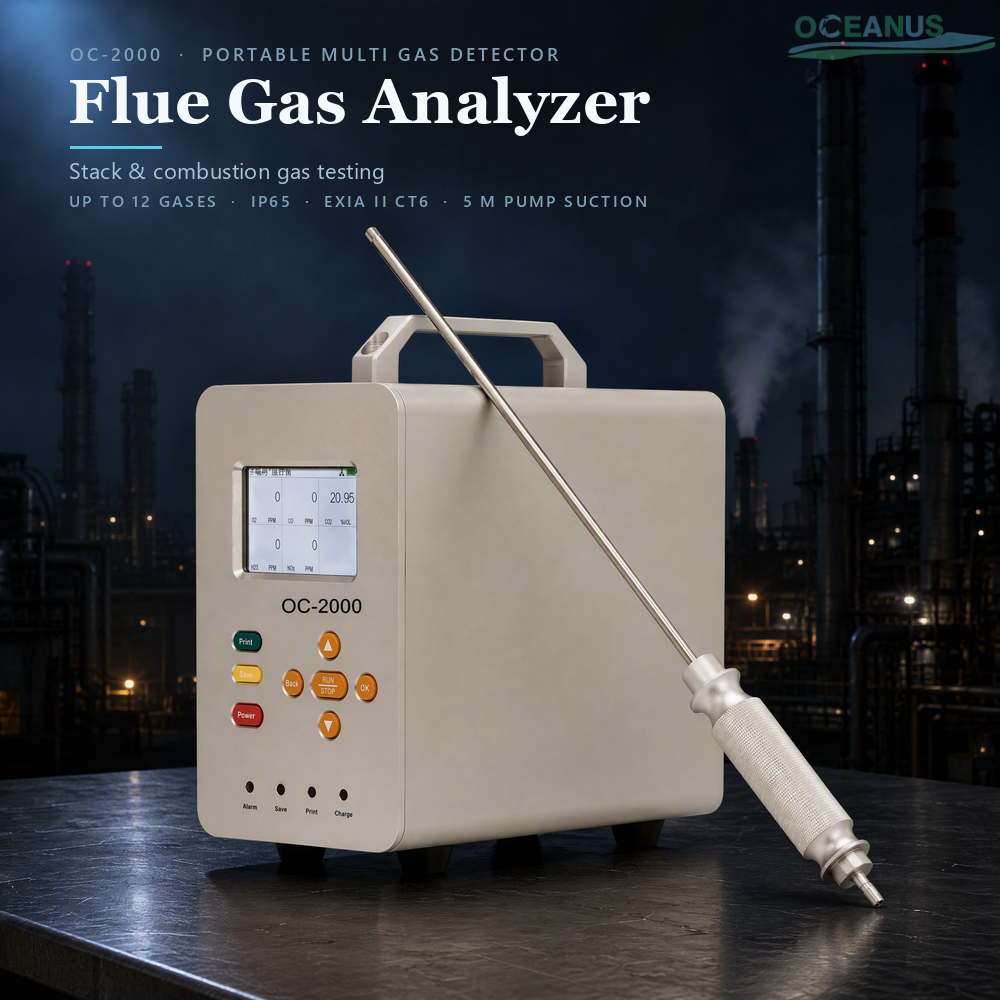

OC‑2000 Portable NOx Analyzer is a fully intelligent multi‑component gas detecting device, adopting advanced large‑scale integrated circuit and nanometer‑level 32‑bit MCU & 24‑bit ADC chip. It supports detecting 1‑12 kinds of gases including NOx, combustible gas, toxic gas, O₂, CO₂, TVOC etc. Equipped with built‑in suction pump, massive data storage and optional print function, this explosion‑proof gas analyzer features full‑span temperature compensation, automatic 6‑point sensor calibration and self‑diagnosis function. Compact and portable, it is reliable for on‑site industrial gas monitoring under complex working conditions.
Product Brief
OC‑2000 Portable NOx Analyzer is a pump‑suction multi‑component gas analysis instrument. It adopts 32‑bit low‑power MCU and 24‑bit ADC chip for high‑precision gas concentration measurement. It supports simultaneous detection of 1‑12 gas species including NOx, combustible gas, toxic gas, O₂, CO₂, TVOC. It features 3.5‑inch industrial color display, 100 000‑point data storage, optional print module, automatic 6‑point sensor calibration and system self‑check. With IP65 ingress protection and Exia II CT6 explosion‑proof standard, the unit operates within ‑30℃ ~ +60℃ under micro‑negative pressure working conditions. Accessories include optional high‑temperature sampler, humidity‑temperature sensor and wireless/GPRS data transmission.
Features:
It used ultra-low-power 32-bit MCU semiconductor nanometer process 24-bit ADC data chip, measuring accuracy is the highest level;
3.5-inch industrial-grade color at a resolution of 320x480, automatically self-checking for sensors, main chips and components after power on;
Display the concentration in ppm, %vol, mg/m3;
Can inspect 1~12 different kinds of gases;
Data storage for 0.1 million groups of data, optional printer to print the data；
Built-in powerful vacuum pump, pumping distance up to 5 meters, which can work under micro negative pressure environment. Reasonable design of the gas room can ensure that the sensor is not affected by pressure;
Optional temperature-humidity sensor;
Overcharge protection, over-voltage protection, short-circuit protection, anti static, anti-magnetic function;
Real-time checking, timed test 2 test mode can be selected to meet different occasions and different needs ofdifferent users;
Automatic calibration for the sensors which up to level 6-point calibration to ensure measurement accuracy and linearity, also have data recovery function;
Temperature compensation in full span, indicators for power, pump, alarm and failure;
Optional high temperature sampler.
Technical Parameters:
| Gas Type | Nitrogen Oxides NOx, Nitric Oxide NO, Nitrogen Dioxide NO2 ,Flue Gas | ||
| Sensor Type | Electrochemical sensor | ||
| Accuracy | According to the gas | Response Time | ≤20s(T90) |
| Linearity | ≤±1% | Resume Time | ≤20s |
| Repeatability | ≤±1% | Zero Drift | ≤±1%(F.S/year) |
| Sampling | Pump-suction Speed of 2L/min | Alarm Mode | Audible-visual alarm |
| Working Mode | Real-time measurement and timing measurement (For timing measurement mode, the displayed data is average concentration in the timed period.) | ||
| Storage Mode | Real-time storage and timed storage; Can keep record of 0. 1 million groups of data | ||
| Print Mode | Optional mini printer. User can set the print interval, auto-printing mode or manual printing mode. | ||
| Pump Mode | Standard mode or vacuum mode. It can work in micro negative pressure environment. | ||
| Data Resume | Factory default setting with one-key operating | ||
| Self-checking | System checking for battery energy, display status, sensor and hardware | ||
| Protection Grade | IP65 | ||
| Working Temp. | -30℃~+60℃ | ||
| Ex Grade | Exia II CT6 | ||
| Working Humidity | ≤95%RH (non condensing) | ||
| Dimension | 230×120×220mm (L×W×H) | ||
| Working Pressure | -30Kpa~100Kpa | ||
| Weight | 2.5Kg | ||
| Power Supply | 6000mA rechargeable lithium battery | ||
| Optional | Wireless transmitters, transmission distance is 1000- 3000 meters,more optional GPRS transmission over a long distance | ||
Remark: For different gas types, it used different gas sensor. If you have any requirement for other gas type or measurement range, please contact the manufacturer freely.
Application Scenarios: Widely applied in petroleum industry, chemical plant, environmental protection emission monitoring, metallurgy, refinery, gas transmission & distribution, biomedicine, agriculture, industrial flue gas inspection, factory safety monitoring, waste gas treatment plant, combustion efficiency testing and other industrial sites.
