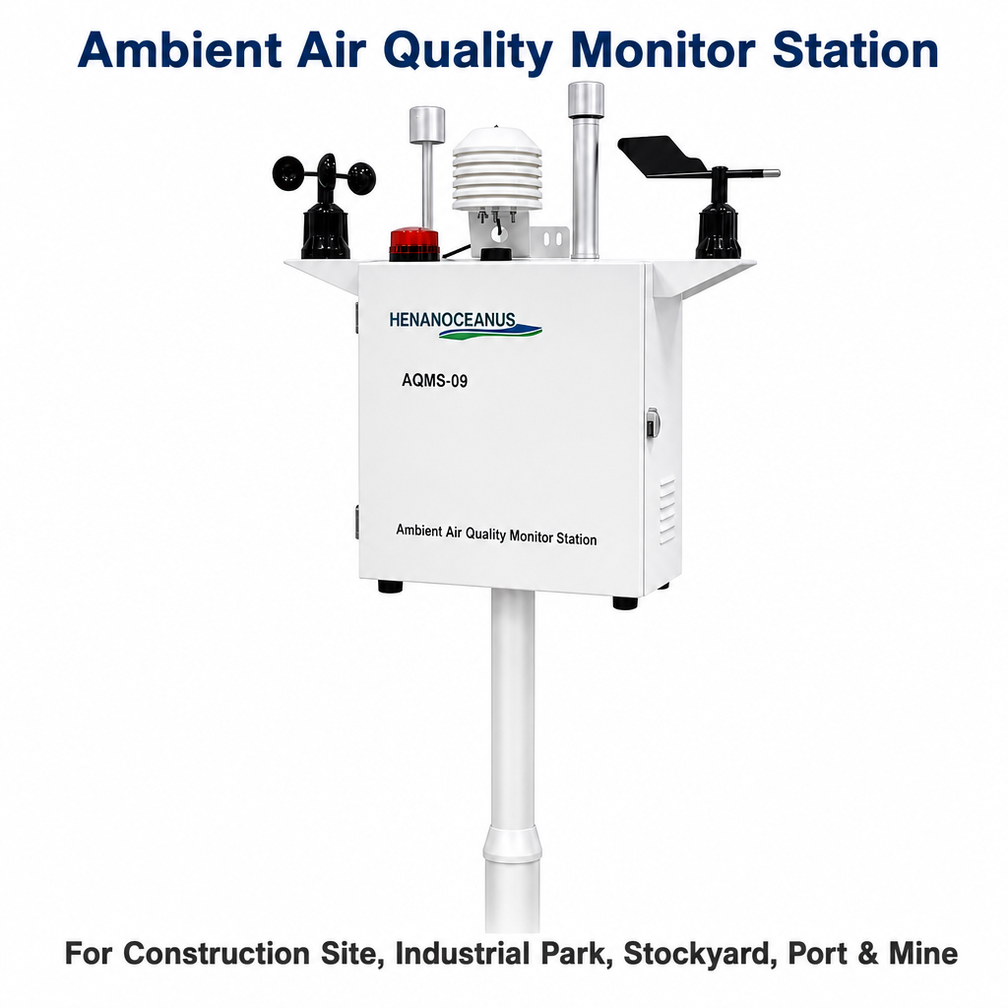

AQMS-09 Ambient Air Quality Monitor Station is a pump-suction outdoor monitoring device. It detects PM2.5, PM10, SO2, NO2, O3, CO, H2S, NH3 and noise, together with meteorological data. Adopt DHS humidity compensation & cross-interference compensation. 4G/GPRS wireless transmission uploads data to cloud platform, supporting long-term unattended operation for construction sites, industrial parks and reservoir areas.
Product Description
The AQMS-09 Ambient Air Quality Monitor Station is an integrated open pollution source online monitoring terminal, designed for continuous outdoor ambient air quality measurement.
This unit adopts pump-suction gas & particle sampling method, equipped with dynamic heating (DHS) humidity compensation and cross-interference compensation technology for gas sensors, greatly improving data accuracy in high humidity complex environments.
It can simultaneously detect particulate matters (PM2.5, PM10), gaseous pollutants including SO₂, NO₂, O₃, CO, H₂S, NH₃, as well as noise and meteorological parameters: temperature, humidity, atmospheric pressure, wind speed & wind direction.
Built-in 4G/GPRS wireless transmission module, the monitor uploads real-time monitoring data to the cloud platform, supporting multi-platform synchronous data upload. Breakpoint resume function guarantees over 99% data transmission rate even under unstable network conditions.
Modular and low-power design supports flexible expansion of monitoring factors. Optional 7-inch internal display and external LED outdoor screen, alarm lights for on-site data visualization and over-limit warning.
Wide working range: -30~+55℃, 0~95%RH, suitable for unattended long-term operation in remote sites, construction sites, industrial parks and reservoir areas.
Features：
It is a low power machine, modular design, can freely combine and expand monitoring factors.
No need to change the sampling cutter, it can detect the PM2.5, PM10, TSP at the same time; Resolution can reach 0.1 μ g/m3
Adopting high-precision light scattering, electrochemical, and photoionization detection technologies to effectively ensure data quality;
Equipped with dynamic heating (DHS) humidity compensation function and cross interference compensation function for gaseous pollutants to ensure data accuracy;
Equipped with breakpoint resume function, ensuring an effective data transmission rate of over 99%;
Adopting 4G full network wireless communication, supporting multi platform data synchronization upload;
Support the linkage function with pollution control facilities.
Can add external facilities such as LED outdoor display screens, alarm lights, etc.
System Specification:
| Item | AQMS-09 basic parameter |
| Power Supply | AC 220V / 50Hz or customized |
| Installation Height | 3m (Or according local rules) |
| Data Display | LED outdoor screen(680x360x85mm)（Optional） |
| 7inch display screen device inside | |
| Data Transmission | GPRS\4G |
| Sampling Method | Pump-suction for Gases & Particle |
| Working Temperature | (-30~+55)℃ |
| Working Humidity | (0~95)%RH |
| Working Air pressure | (80~110)kPa |
Technical Parameter:
Meteorology
| Parameter | Range | Resolution | Accuracy |
| Temperature | (-40 ~ 123.8)℃； | 0.01 ℃ | ±0.4 ℃ |
| Humidity | (0 ~ 100)%RH | 0.01 %RH | ±3 %RH |
| Air Pressure | (70 ~ 120)kPa | 1 Pa | ±250 Pa |
| Wind Speed | (0 ~ 32.4)m/s | 0.1 m/s | ±1 m/s |
| Wind Direction | (0 ~ 359)° | 1° | ±1° |
Noise
| Noise | Range：35 dB(A) ~ 110 dB(A) |
| Max error：0.5 dB(A) | |
| Self-noise：< 35 dB(A) | |
| Working temperature：-30 ℃ ~ 60 ℃ |
Pollutants Gas
| Gas Name | Method | Range | Indication Error | Resolution | LOD | Repeatability | Drift |
| SO2 | Electrochemistry | 0.2÷2 mg/m³ | ±10% FS | 0.1 nmol/mol | 5 nmol/mol | 5 % | ±10 % FS |
| NO₂ | Electrochemistry | 0.03÷0.6 mg/m³ | ±10% FS | 0.1 nmol/mol | 5 nmol/mol | 5 % | ±10 % FS |
| O3 | Electrochemistry | 0.05÷1.0 mg/m³ | ±10% FS | 0.1 nmol/mol | 5 nmol/mol | 5 % | ±10 % FS |
| CO | Electrochemistry | 2.0÷40 mg/m³ | ±10% FS | 0.1 μmol/mol | 0.1 μmol/mol | 5 % | ±10 % FS |
| H2S | Electrochemistry | 0.004÷0.08 mg/m³ | ±10% FS | 0.1μmol/mol | 0.2 μmol/mol | 3 % | ±10 % FS |
| NH3 | Electrochemistry | 0.6÷1.2 mg/m³ | ±10% FS | 0.1 μmol/mol | 0.2 μmol/mol | 3 % | ±10 % FS |
ParticlParticle Matter
| Particle Size | Method | Range | Indication Error | Resolution | Low Limited | Repeatability | Drift |
| PM2.5 | Laser scattering | （0 ~ 500）μg/m³ | ±10 % | 0.1 μg/m³ | 2 μg/m³ | 5 % | ±5 %FS |
| PM10 | Laser scattering | （150 ~ 3000）μg/m³ | ±10 % | 0.1 μg/m³ | 2 μg/m³ | 5 % | ±5 %FS |
Remark: If your need parameters not listed, or any special request, please contact us for confirmation.
Application Scenarios
Industrial Park & Open Pollution Source Monitoring
Construction Sites & Urban Road Air Quality Supervision
Reservoir Area, Hydropower Project Remote Environmental Monitoring
Urban Parks, Residential Community Ambient Air Monitoring
Port, Stockyard, Mining Area Air Pollution Monitoring
Rural & Remote Unattended Environmental Observation Points
Environmental Protection Bureau Air Quality Inspection
