OC-1000 portable multi-gas detector accurately monitors C2H4 Ethylene, CO2 and O2 concentration in real time. Specially designed for cold storage, fruit and vegetable preservation, controlled atmosphere warehouse and agricultural cold chain safety management.
Description
The OC-1000 portable C2H4, CO2, O2 multi-gas detector is a professional agricultural and cold-chain gas monitoring device, customized for fruit, vegetable and flower preservation environments.
It can simultaneously detect Ethylene (C2H4), Carbon Dioxide (CO2) and Oxygen (O2). Ethylene is the core ripening gas that accelerates fruit aging and decay. Real-time C2H4 concentration monitoring helps customers control storage atmosphere and extend shelf life of agricultural products.
Equipped with high-precision professional sensors, the device features stable data, fast response and anti-interference performance. Portable handheld design is perfect for daily patrol in cold storage rooms, controlled atmosphere warehouses, logistics cold chains and agricultural processing factories.
With data recording and adjustable alarm threshold functions, it provides reliable atmosphere data support for intelligent fresh-keeping storage, effectively reducing fruit and vegetable loss during storage and transportation.
Features
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
3.5 inch IPS industrial grade color screen.
Support Chinese or English operation menu.
Gas concentration unit available for %LEL， PPM, %VOL, mg/m3.
For 1~5 gas detecting, gas type all be customized, supporting the PM2.5 particle counter sensor, and humidity sensor, etc.
Internal sampling pump for suction, the suction strength is adjustable in different level.
Explosion proof grade is Exia ⅡCT4.
Technical Parameter:
Technical Parameter:
Gas type | C2H4, CO2, O2 | ||
Working principle | Electrochemical sensor for C2H4, O2 NDIR sensor for CO2 | ||
Sampling mode | Pump-suction sampling | ||
Measuring range | C2H4: 0~10PPM/0.1PPM; CO2: 0~100%vol/0.01ppm; O2: 0~100%vol/0.1%vol; | ||
Resolution | C2H4: 0.1ppm O2: 0.1%vol CO2: 0.01%vol | ||
Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||

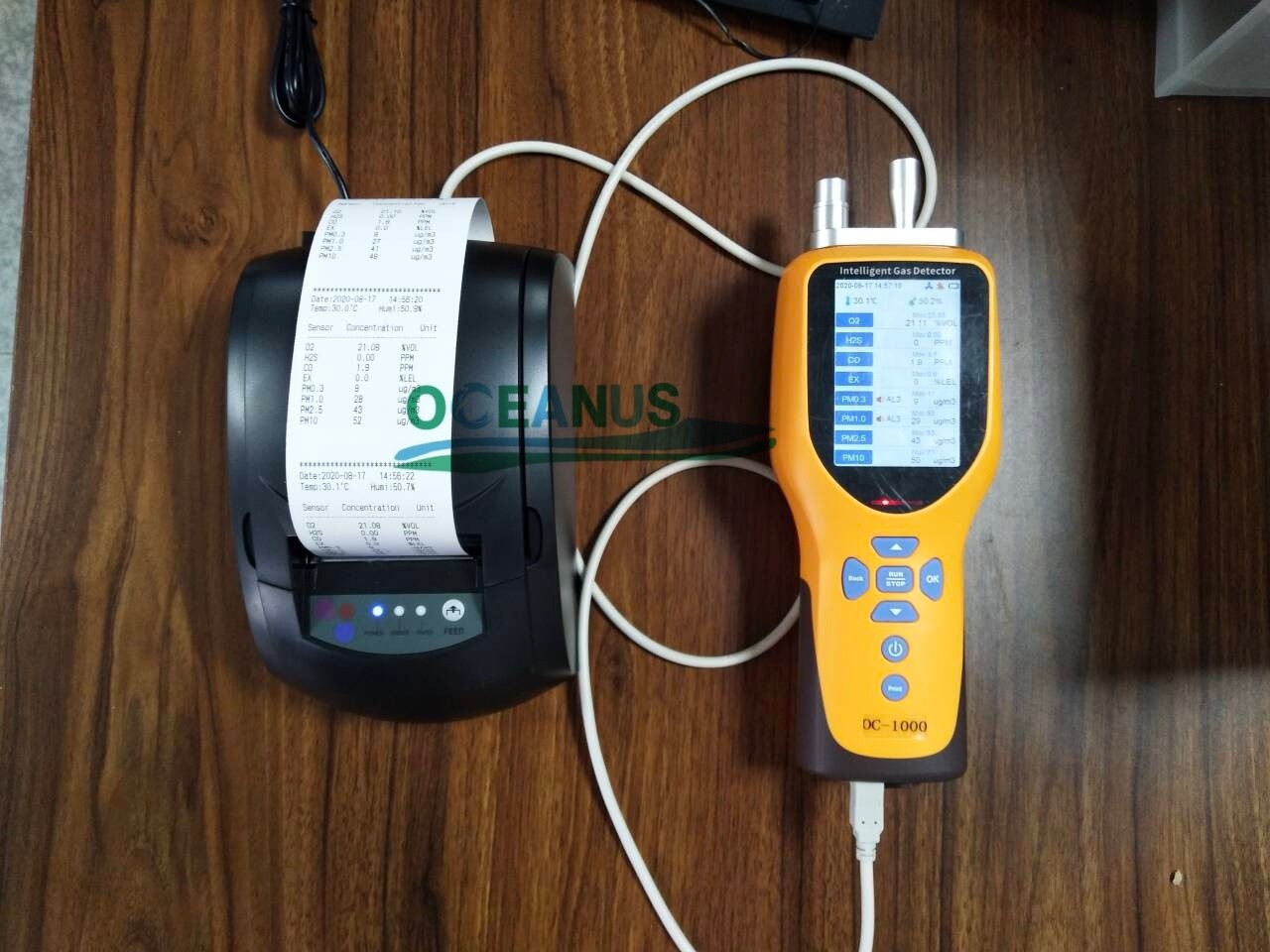

Printer | Optional mini-printer. | ||
Response time | ≤20s(T90) | Recovery time | ≤20s |
Repeatability | ≤±1% | Linearity | ≤±1% |
Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
Working temperature | -40~60℃ | Working humidity | 0-95%RH(non-condensing) |
Working pressure | -30Kpa ~ 100Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
Protection grade | IP65 | Shell material | ABS+PC |
Dimensions | 220*88*55mm | Weight | 0.5KG |
Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Remark: If you need gas or measuring range not listed on the above, pls send us your details requirments for further discussion.
Function:
Inspect the gas concentration and alarm when it reaches preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is available.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
