Construction Site Noise Monitoring: How Class 1 Sound Level Meters Support Environmental Assessment

Construction activities such as excavation, piling, concrete cutting, and heavy machinery operation can generate significant noise. Without proper monitoring, excessive noise may affect nearby residential areas, schools, hospitals, and other sensitive locations.

For construction contractors, environmental consultants, and EHS professionals, reliable noise measurement is an important part of environmental impact assessment (EIA), noise management, and project documentation. Choosing a suitable sound level meter helps teams collect useful data and make informed decisions about noise control.

1. Why Is Construction Site Noise Monitoring Important?

Construction noise changes throughout the day as equipment and work activities vary. A single reading may not represent the overall noise environment, especially when machinery operates intermittently or several sources produce noise simultaneously.

A structured noise survey can help project teams:

l Evaluate noise levels near site boundaries and sensitive receptors.

l Identify noisy equipment and construction activities.

l Collect data to support environmental assessments.

l Evaluate the effectiveness of noise reduction measures.

l Maintain records for project reviews and applicable regulatory requirements.

Measurement locations, survey duration, background noise, weather conditions, and local requirements should all be considered when planning a survey.

2. IEC 61672: Choosing the Appropriate Sound Level Meter

IEC 61672 establishes performance requirements for sound level meters and distinguishes between Class 1 and Class 2 instruments. Class 1 meters have tighter performance tolerances and are commonly selected for detailed environmental noise investigations and applications requiring higher measurement precision.

Class 2 meters can be suitable for general surveys and preliminary assessments when permitted by the applicable measurement method. The required instrument class depends on local regulations, project specifications, and the purpose of the assessment.

For formal environmental monitoring, project teams should confirm the required instrument class, calibration status, and measurement procedure before starting fieldwork.

3. OC-HY128: Designed for Versatile Noise Measurement

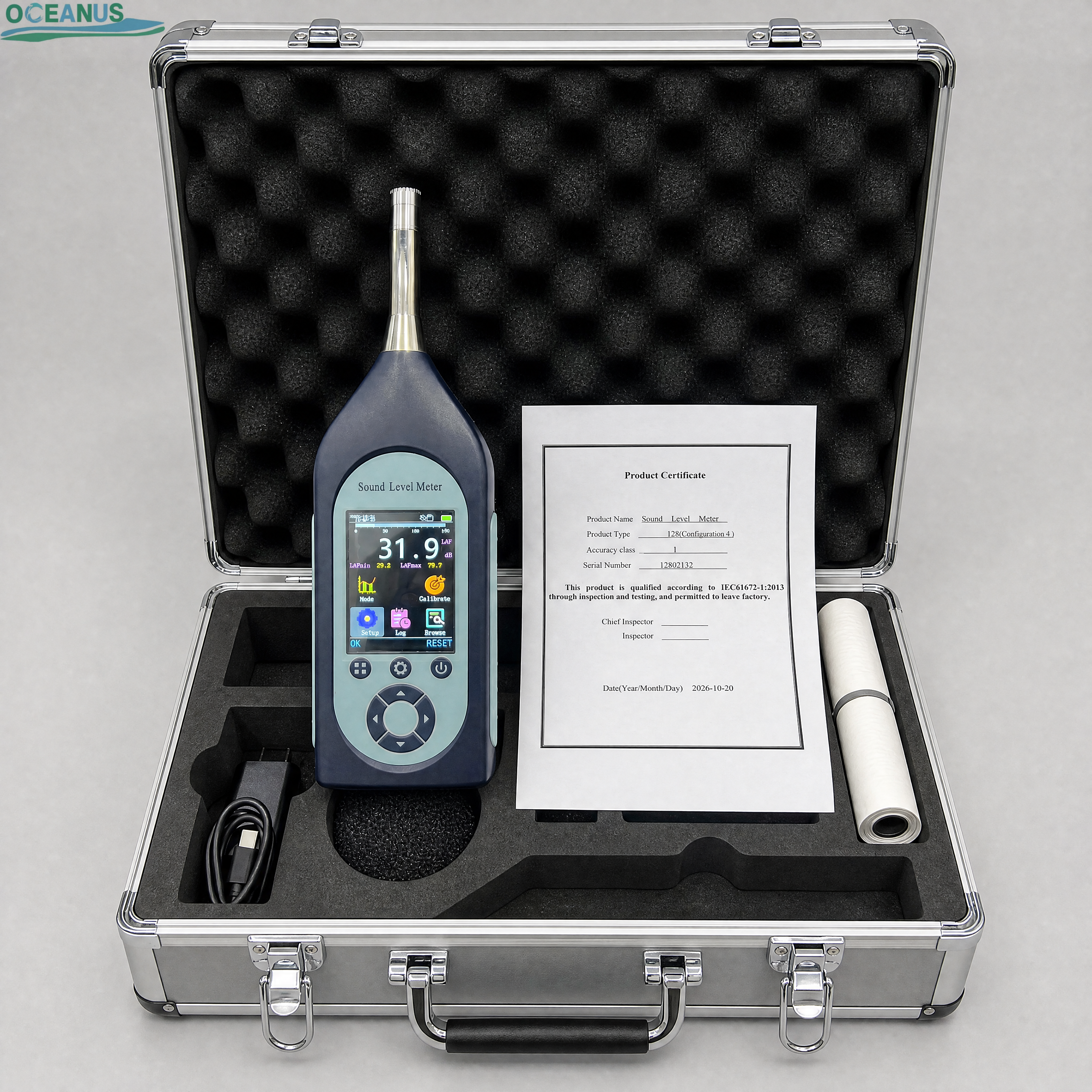

The Oceanus OC-HY128 Color Screen Multi Function Noise Meter is a Class 1 sound level meter designed for evaluating different types of acoustic noise. Its measurement capabilities make it suitable for a range of professional noise assessment tasks, subject to the selected model configuration.

Key features include:

Class 1 performance: A specified frequency range of 10 Hz–20 kHz.

Multiple measurement functions: Supports sound pressure level, equivalent continuous sound level, exposure sound level, and statistical sound level measurements.

Multiple working modes: Integral average, parallel measurement, statistical analysis, 24-hour measurement, and indoor noise measurement.

Optional frequency analysis: 1/1 octave and 1/3 octave analysis are available on selected configurations.

Low-frequency measurement: A low-frequency weighting option supports secondary radiation noise measurement within 16–200 Hz.

Color display and data storage: A 2.8-inch OLCD color display and a 32 GB TF card, expandable to a maximum of 64 GB.

The HY128 series includes multiple configurations, so available measurement modes and optional functions should be confirmed when selecting a model.

4. Supporting Environmental Noise Surveys in the Field

For construction site assessments, the OC-HY128 can help professionals record and evaluate noise levels using appropriate measurement modes. Its 24-hour measurement function can support extended monitoring where required, while statistical analysis provides additional information about noise variations.

Optional octave and one-third-octave analysis can help users investigate the frequency characteristics of noise sources. This may be useful when a project requires more detailed acoustic analysis rather than sound level readings alone.

The instrument supports operation using its rechargeable 3.7 V, 6000 mAh lithium battery or a power bank for 24-hour monitoring. It also provides USB data communication and a printing interface.

These functions can support field measurements and subsequent data review. Reliable results still depend on correct instrument setup, measurement positioning, calibration checks, and compliance with the applicable survey method.

5. Choose a Noise Monitoring Solution for Your Project

Effective construction noise management begins with a clear monitoring plan and an instrument that matches the project's technical requirements.

The Oceanus OC-HY128 offers Class 1 sound measurement and multiple analysis functions for professional noise assessment applications. Before use in a regulated project, confirm the required standard, calibration documentation, and model configuration with the relevant project authority.

Looking for a sound level meter for construction site or environmental noise monitoring? Contact Oceanus to discuss your measurement requirements and find a suitable OC-HY128 configuration.
