OC-F08 wall mounted fixed CO2 detector with NDIR carbon dioxide sensor, 0-5000ppm, RS485,4-20mA, relay output, explosion-proof IP66, industrial online CO2 gas monitor for greenhouse, fermentation, cold storage.
Description

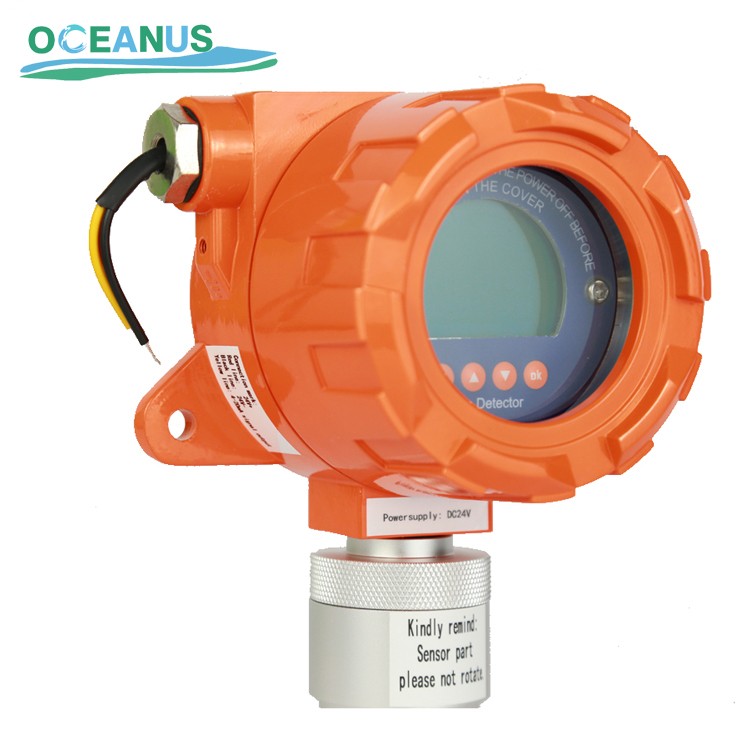

C-F08 fixed carbon dioxide detector is a wall-mounted industrial gas monitor equipped with high-performance NDIR non-dispersive infrared CO₂ sensor. It continuously detects CO₂ concentration within 0~5000ppm, designed for long-term online monitoring of carbon dioxide in industrial environments.
Adopting die-casting aluminum housing with IP66 ingress protection and explosion-proof structure, the detector can work reliably in harsh dusty and wet industrial sites. It supports multiple signal outputs: 4-20mA analog signal, RS485 Modbus digital communication and relay alarm contact output, which can be seamlessly connected to PLC, DCS and industrial alarm control systems. When CO₂ concentration exceeds preset threshold, the relay will trigger external audible & visual alarm devices to warn operators for safety protection.
This NDIR CO₂ sensor features excellent gas selectivity, no oxygen dependency and stable long-term performance. It can effectively prevent safety hazards caused by high CO₂ accumulation and oxygen deficiency, widely used in greenhouses, fermentation workshops, cold storage, mines, food processing plants, underground tunnels and chemical factories.
Features：
4-20mA standard analog signal and RS485 digital signal output, 200~ 1000HZsignal output, relay output (optional);
Intelligent sensor, modular design, easy maintenance
Display the gas concentration in ppm, %LEL, %vol and mg/m3 is selectable;
LCD screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor;
Infrared remote control operation, avoid cover opening operation in dangerous situations.
With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability;
With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.
Applications
Greenhouse & Plant Grow Room
Beverage & Food Fermentation Workshop
Cold Storage & Warehouse
Mine, Underground Pipe Tunnel
Chemical Plant, Pharmaceutical Factory
Livestock & Poultry Farm
Indoor Air Quality Monitoring for Industrial Building
Technical Parameter:
Detection Gas | Carbon Dioxide CO2 |
Sensor Type | Infrared sensor |
Detecting Range | 0~5000ppm, 0~20%vol, 0~100%vol or customized |
Resolution | 1ppm, 0.1%vol |
Sampling | Diffusion or pump-suction, circulation selectable |
Precision | ≤±3%F.S |
Repeatability | ≤±2% |
Zero drift | ≤±1%(F.S/year) |
Sensor Life | 2~3years (Catalytic combustion, Electrochemical, Semiconductor) 3~5 years(PID, Infrared) |
Response Time (T90) | ≤30s（combustible gas） |

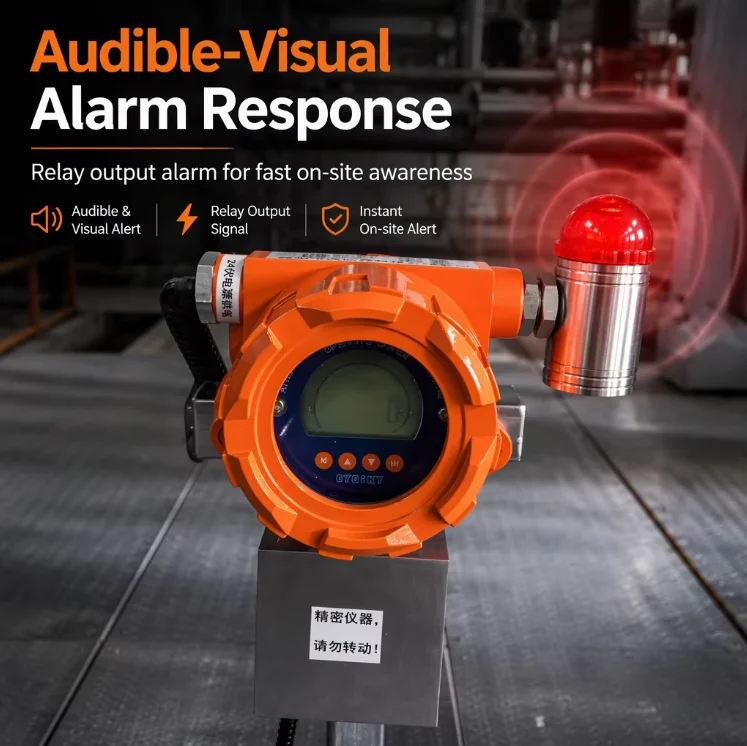

Alarming mode | Audible-visual alarm, relay output alarm |
Working Temperature | -20℃~50℃ (Toxic gas) -40℃~70℃ (Combustible gas) Or Customized for special demands |
Working Humidity | 10%~95%RH (non-condensing), if >90%RH, can add the filter |
Working Pressure | 86kPa~106kPa |
Working Voltage | 24V DC (Normal operating voltage range: 10~30VDC) |
Power consumption | <1.5W (Toxic gas) ; <2.5W (Combustible gas) |
Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; (Optional) Four-wire system RS485 digital signal output; (Optional) Frequency signal 200~1000Hz output; Two-level relay output:220VAC 0.5A, 5VDC 0.5A Two sets of passive relays (24VDC 2A) |
Installation Means | Wall mounted, Pipe type (Thread:M40*1.5 ) |
Main material | Shell (Die casting aluminum) , Air chamber (Hard alumina) |
Explosion-proof Index | Exd IIC T6 Gb(Combustible gas) Exd ib IIC T6 Gb(Toxic gas) |
Protection Grade | IP66 |
Electrical Interface | 3/4″NPT(Female Screw)、1/2″NPT(Female Screw) |
Transmit Distance | ≤2000m (If more than 2000m, can add the repeater.) |
Dimension | 185 mm×137.2 mm×90.7mm（L×W×H） |
Weight | About 1.6Kg |
Standards | GB15322.1-2003, GB3836.1-2010, GB3836.2-2010, GB3836.4-2010, GB12358-2006 |
Warranty | 12months |
Certificate | CNEx, CE, RoHS |
