This portable CO2 detector adopts high‑precision NDIR infrared sensor, delivers fast response and stable carbon dioxide concentration measurement. Equipped with high‑definition LCD display, it can show real‑time CO2 value, temperature and humidity

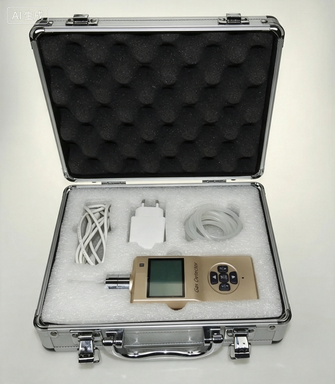

What is the OC-905 gas detector ?
OC-905 portable CO2 detectors is designed with built-in pump and imported sensor, with stable performance and high precision. The data can be displayed on the screen, and the data can also be exported to the computer through the USB data cable.
What is the feature of OC-905 gas detector ?
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.5 inch dot matrix display interface.
All English operation menu and easy operation.
Unit data available for %vol, ppm and mg/m3.
The circuit installed the four layers of wire, so well anti-interference.
Explosion proof grade is Ex ib ⅡC T4 Gb.
What is the funtion of OC-905 gas detector ?
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump, stable flow rate, can be opened or closed;
Our Certificate
Technical Parameter:
| Gas type | CO2 (Carbon Dioxide) |
| Working principle | Infrared sensor |
| Measuring range | 0-2000ppm、5000ppm、50000ppm、20%vol、50%vol、100%Vol or customized |
| Resolution | 0.1ppm,0.1%vol |
| Concentration unit | %LEL, %Vol, ppb, ppm，mg/m3 |
| Precision | ±≤3%F.S |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 100000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Working temperature | -20℃～50℃(Special requirements need to be customized) |
| Working humidity | 10%-95%RH(non-condensing) |
| Working pressure | 86Kpa~106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Aluminum alloy metal housing, ABS+PC |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Power consumption | 0.5W |
| Dimensions | 200.5*64.8*35.5mm （L*W*H） |
| Weight | 0.46KG |
| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
