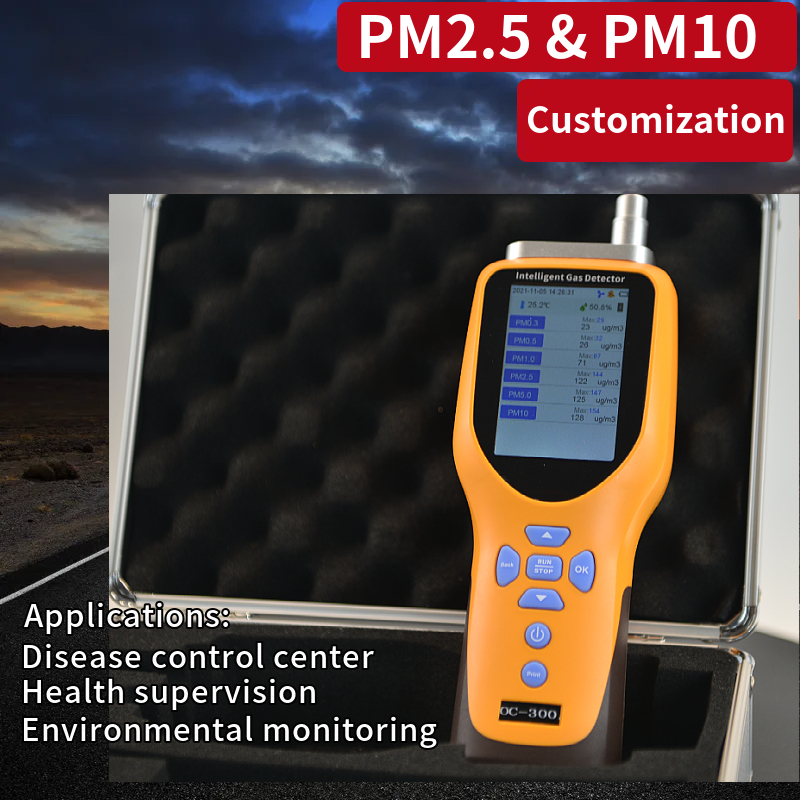

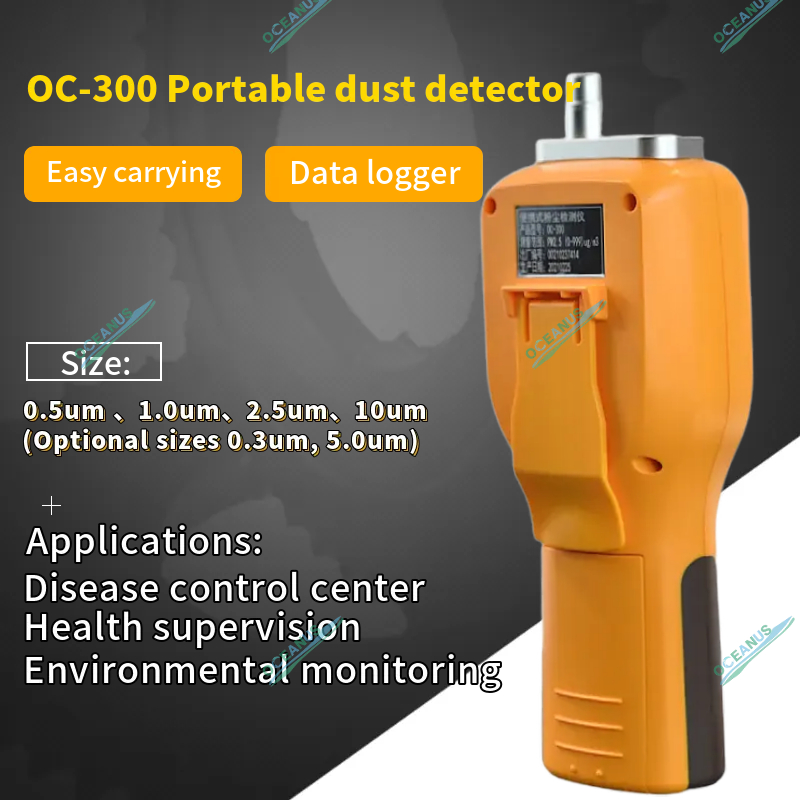

Introduction
Particle counter, Laser particle counter, Dust particle counter, Handheld particle counter
Features：
①Semiconductor
technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition
chip, so with the high accuracy.
②3.5 inch IPS
industrial grade color screen, displaying each parameter.
③Channel sizes：0.5um、1.0um、2.5um、10um.
④Support the
Temperature/ Humididy sensor
⑤Different mode
adjustable: quantity detecting mode, quality detecting mode, Counting
Efficiency mode.
⑥Data logger
function, the capacity is 100000 group datas.
⑦Optional function
of micro printer.
⑧With the function
of overvoltage protection, overcharge protection, short circuit protection,
anti-electrostatic interference, anti-magnetic interference.
⑨Chinese/English
operation menu.
Technical Parameter：
|
Light source：
|
Laser diode(>100,000
hours MTBF)
|
|
Sensor:
|
Ultra high sensitivity
optical sensor
|
|
Particle size：
|
0.5um、1.0um、2.5um、10um
|
|
Coincidence
Loss：
|
<5% @ 70,000
particles/liter
|
|
Gas detecting：
|
With 1~3 gas type(Optional)
|
|
Tem/Humidity：
|
Tem/humidity sensor,
Temperature：-40 ～ 120℃，Humidity：0-100%RH
|
|
Verification
standard：
|
According to GB/T16292-1996
and ISO14644-1
|
|
Flow Rate
|
2.83 L /min (0.1cfm)
|
|
Sample time：
|
30s
|
|
Detect mode：
|
Three mode selectable：quantity mode of
PC/L，quality mode of
ug/m3， Purification
efficiency of %
|
|
Detect methods：
|
Time detecting or circle
detection is adjustable.
|
|
Alarm mode：
|
Quantity or quality
selectable
|
|
Interface：
|
RS232-USB
|
|
Storage mode：
|
Real-time storage or timing
storage is adjustable；Storage capacity of 100000 group data，can check the
history data on the counter screen
|
|
Print mode：
|
Optional micro-printer, can
reset the print period and print mode.
|
|
Explosion-Proof
grade
|
ExiaⅡCT4
|
Body material：
|
ABS+PC
|
|
Protection
grade:
|
IP66
|
Working tem：
|
5 ～ 45℃
|
|
Power：
|
4000mA rechargeable lithium
battery
|
Working humidity：
|
≤90%RH，non-condensing
|
|
Size：
|
220*85*55 mm（L×W×H），0.5 Kg（net weight）
|
|
Accessory：
|
Box, Instruments, calibrate
cap, data cable
|
|
If you need this particle counter or other instruments for air quality control, welcome to contact us, we will provide more details for you.
