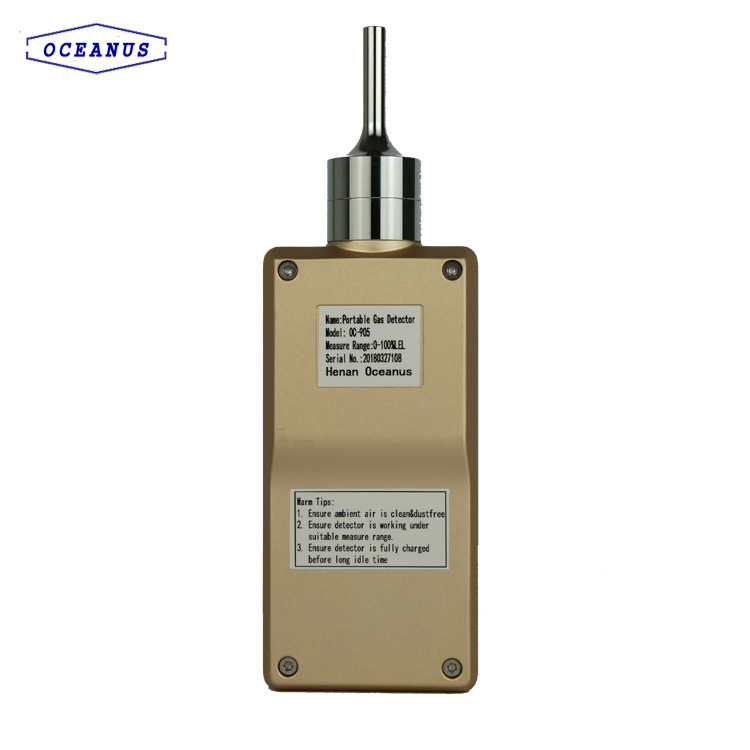

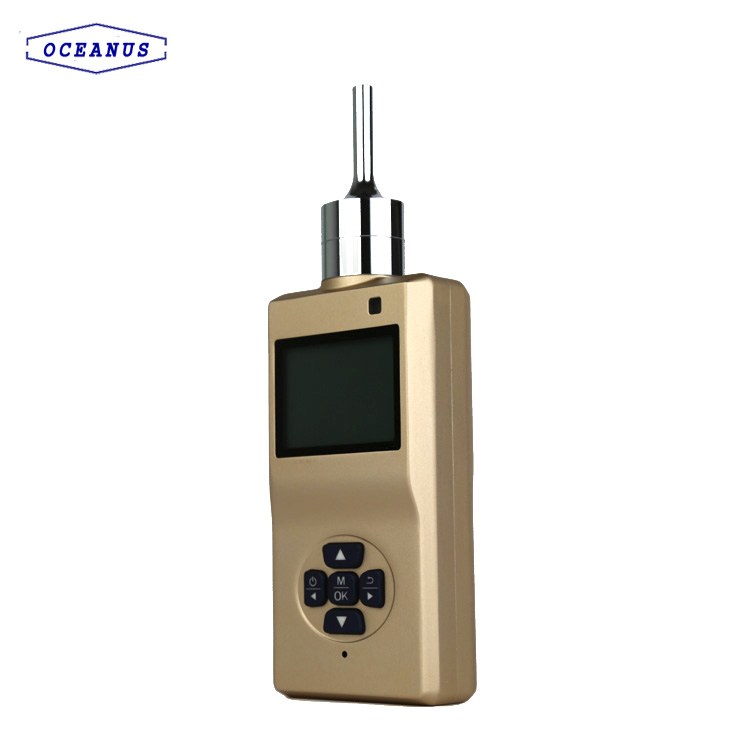

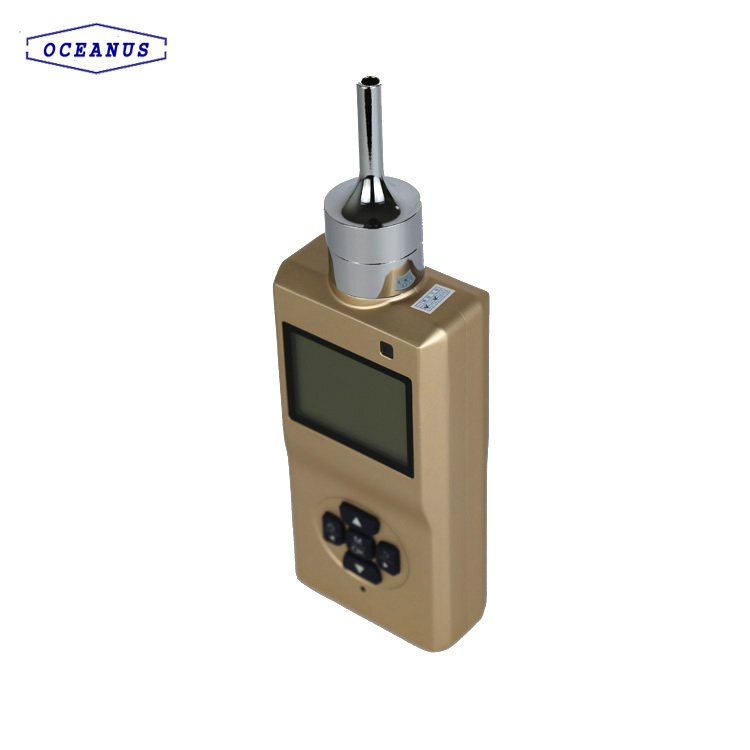

C2H4O ETO portable gas detector
- Brand Oceanus
- Type OC-901
Portable ETO gas detector, C2H4O gas detector, portable gas detector
Feature
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.5 inch dot matrix display interface.
All English operation menu and easy operation.
Unit data avaible for PPM, %VOL, mg/m3, LEL, PPB.
The circuit installed the four layers of wire, so well anti-interference.
Explosion proof grade is Exd ib ⅡC T4 Gb.
Function
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump could be controlled.
Applications
Common applications include chemical industry, petroleum, gas station, metallurgy, oil, municipal, environment protection, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect ethylene oxide (ETO) gas concentration.
Specifications
|
Gas type |
Ethylene oxide (ETO) |
||
|
Working principle |
Electrochemical、 Infrared、 PID or Thermal conductivity sensor, depend on the using environment. |
||
|
Measure range |
0-10ppm, 20ppm, 50ppm, 100ppm, 200ppm, 500ppm, 1000ppm, 10000ppm or be customized. |
||
|
Resolution |
0.01ppm, .0.1ppm, 1ppm |
||
|
Precision |
≤3%FS |
||
|
Sampling method |
Pump-suction sampling |
||
|
Data storage |
About 100000 group of data capacity. |
||
|
Response time |
T90≤30s |
Pre-heating time |
≤60S |
|
Repeatability |
≤±1% |
Display |
LCD dot matrix display |
|
Operating language |
English |
Concentration unit |
ppm，mg/m3, %vol, %LEL |
|
Working temperature |
-20℃～60℃ |
Working humidity |
10%-95%RH(non-condensing) |
|
Explosion-Proof grade |
Exd ib ⅡCT4 Gb |
Protection grade |
IP66 |
|
Alarm mode |
Audible, visual |
Working pressure |
86Kpa ～ 106Kpa |
|
Dimensions |
135*65*35mm |
Weight |
0.5KG |
|
Accessory |

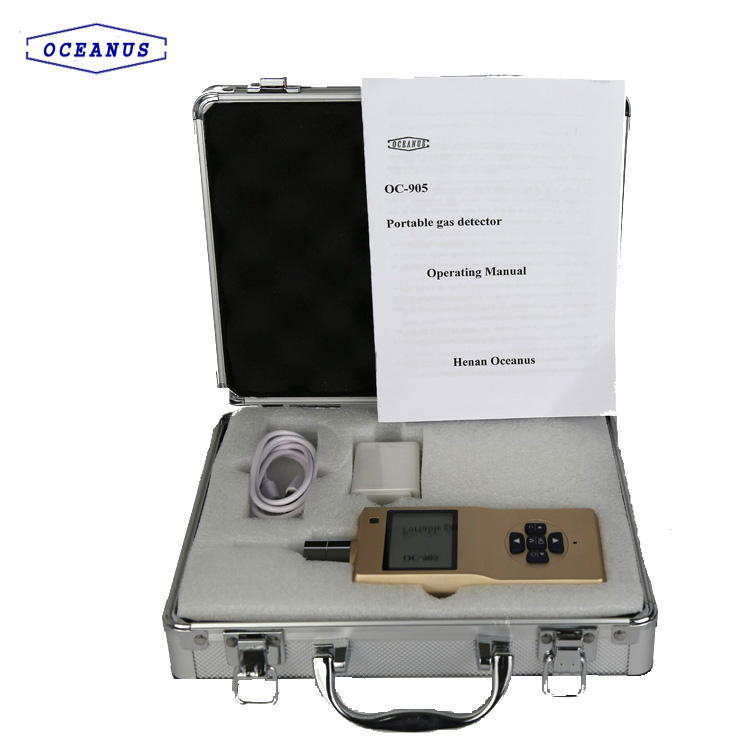

Box, instruction, USB charger , data line |
||
|
Quality standard |
GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
||
If you need ETO gas detector, portable ETO gas detector or fixed ETO gas monitor, welcome to contact us, and send us the requirement, more details will provide for you.
We Henan Oceanus Company is located in Henan province, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of gas detectors since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global market.
If you need more details of the OC-901 portable gas detector, welcome to contact us:
Email: info@china-oceanus.com
Telephone: +86 0371 60998169
Whatsapp: +86 15981942832
Whatsapp: +86 13673683950
